Clima Airflow Systems
Clima Airflow Systems
ISO 9001:2015
ISO 9001:2015 Certified Manufacturer

Engineered airflow
for pharma,
healthcare& food.

We design, manufacture and commission high-efficiency HVAC systems, Air Handling Units, modular clean room partitions, ceilings and doors — from our facility in Pinjore, Haryana.

HVAC
HVACEnd-to-end
REF
RefrigerationIndustrial
CR
Clean RoomPartition & Ceiling
VAL
ValidationISO 14644

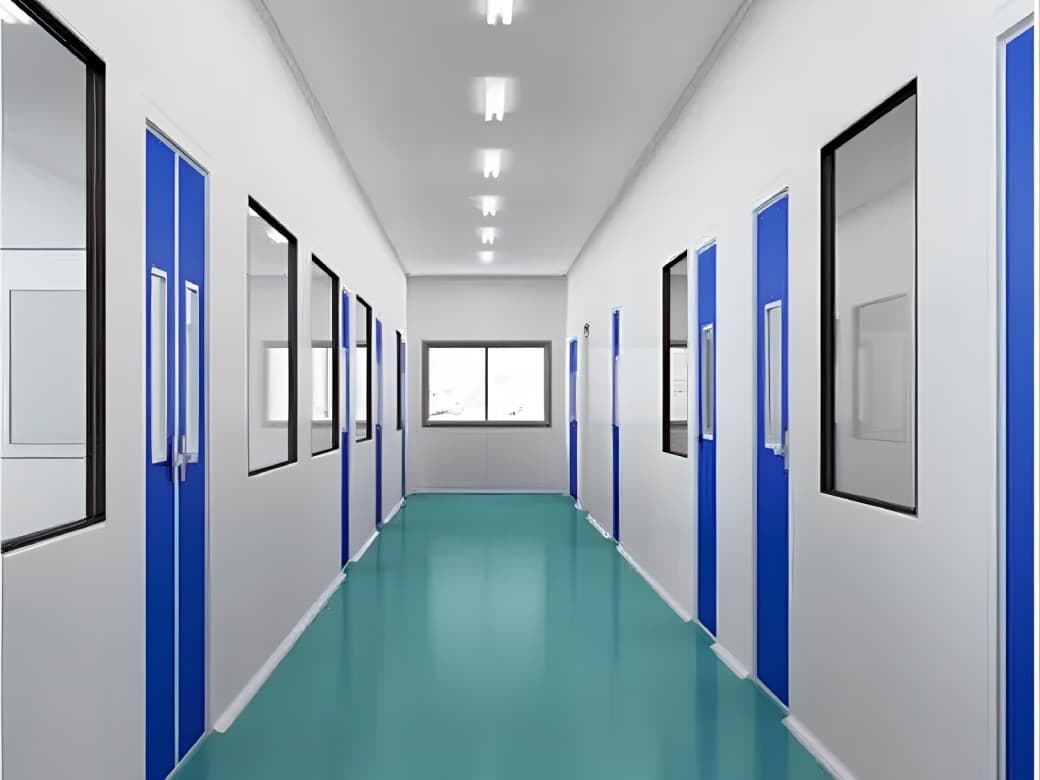

Modular clean room corridor with blue doors and partition panels
Madawala Plant · Pinjore
2,500 sq.ft.
manufacturing facility
50,000CFM max
Capabilities

Five disciplines, one engineering team.

01

HVAC Projects

Design, supply, install & commission AHUs, ducting, chiller piping and DX units.

02

Refrigeration

Industrial cooling, cold chain & process refrigeration for pharma and food.

03

Clean Room Partition & Ceiling

GPSP panels in PUF, honeycomb or mineral wool. 40–100 mm. Up to 4 m height.

04

HVAC Validation

ISO 14644 air flow, HEPA leak, particle count, RH & temperature qualification.

05

Clean Room Doors

Flush, industrial, acoustic, emergency & fire-rated. GPSP and stainless steel.

About

Reliable, world-class airflow solutions — built in-house.

Clima Airflow Systems is committed to delivering reliable, world-class high-efficiency solutions and products to the pharma, healthcare and food industries — across HVAC systems, modular clean room partitions, ceilings and metal doors.

Our manufacturing plant at Madawala, Pinjore-Nalagarh Road, is equipped with state-of-the-art machinery — laser cutting, bending, PUF injection and in-house powder coating — covering a 2,500 sq.ft. area.

PharmaHealthcareFoodModular OT
2,500sqft
Manufacturing area
50kcfm
Max AHU capacity
ISO9001
2015 Certified
5core
Disciplines
Laser Cutting MachinePrecision sheet fabrication
Bending MachinePanel & frame forming
PUF Injection MachineHigh-density panel infill
Powder Coating LineIn-house, RAL palette
Air Handling Units

Heavy-duty AHUs from 500 to 50,000 CFM — engineered for every application.

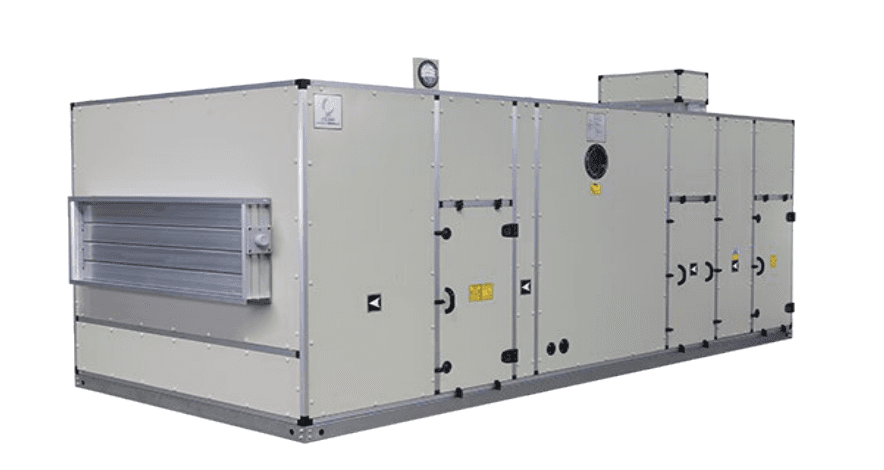

Heavy-duty single decker air handling unit

Aluminum thermal-break casing.
AMCA-certified blowers.
Puff-infill double-skin panels.

Every unit is built to a detailed drawing and technical specification — sized exactly to your application. We use the latest design software, integrate safety hardware to protect operators, and run extensive performance & noise testing before dispatch.

CasingHeavy-duty aluminum thermal-break profileExternally chamfered, inner curved
CornersSpecial nylon corner constructionForms AHU frame sections
PanelsDouble-skin with PUF infillNoise-free, better thermal insulation
BlowersAMCA-certified airfoil & backward-curvedPerformance & noise tested
Manufactured range
500 → 50,000 CFM
Configurations
Floor · Single & Double Decker · Ceiling-Suspended
HVAC Products

The full airflow chain — from intake to exhaust.

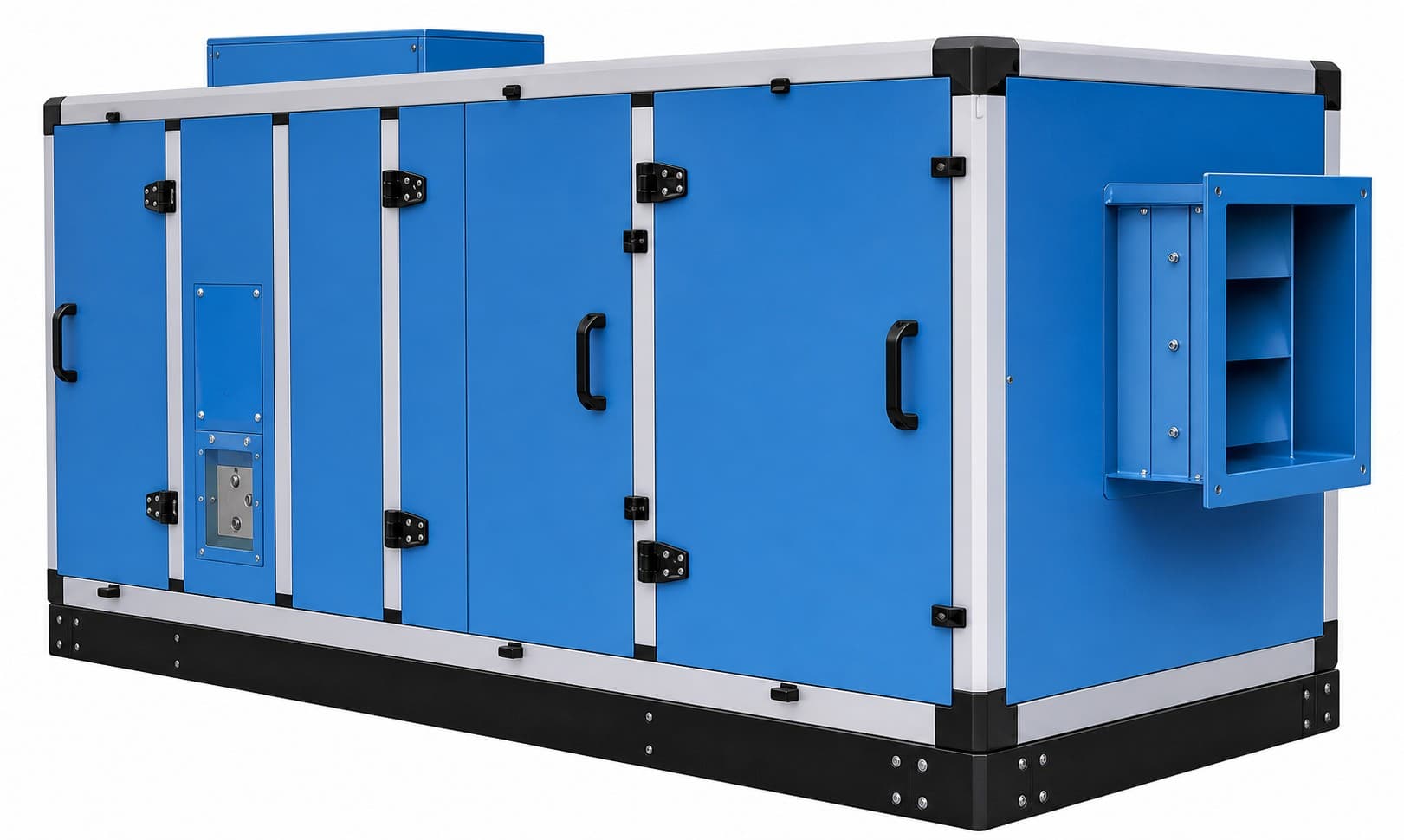

Single Decker Air Handling Unit
AHU · Floor mounted

Single Decker AHU

Horizontal floor-mounted AHU with thermal-break aluminum profile and PUF-filled double-skin panels for low-noise operation.

Floor mounted500–50,000 CFM

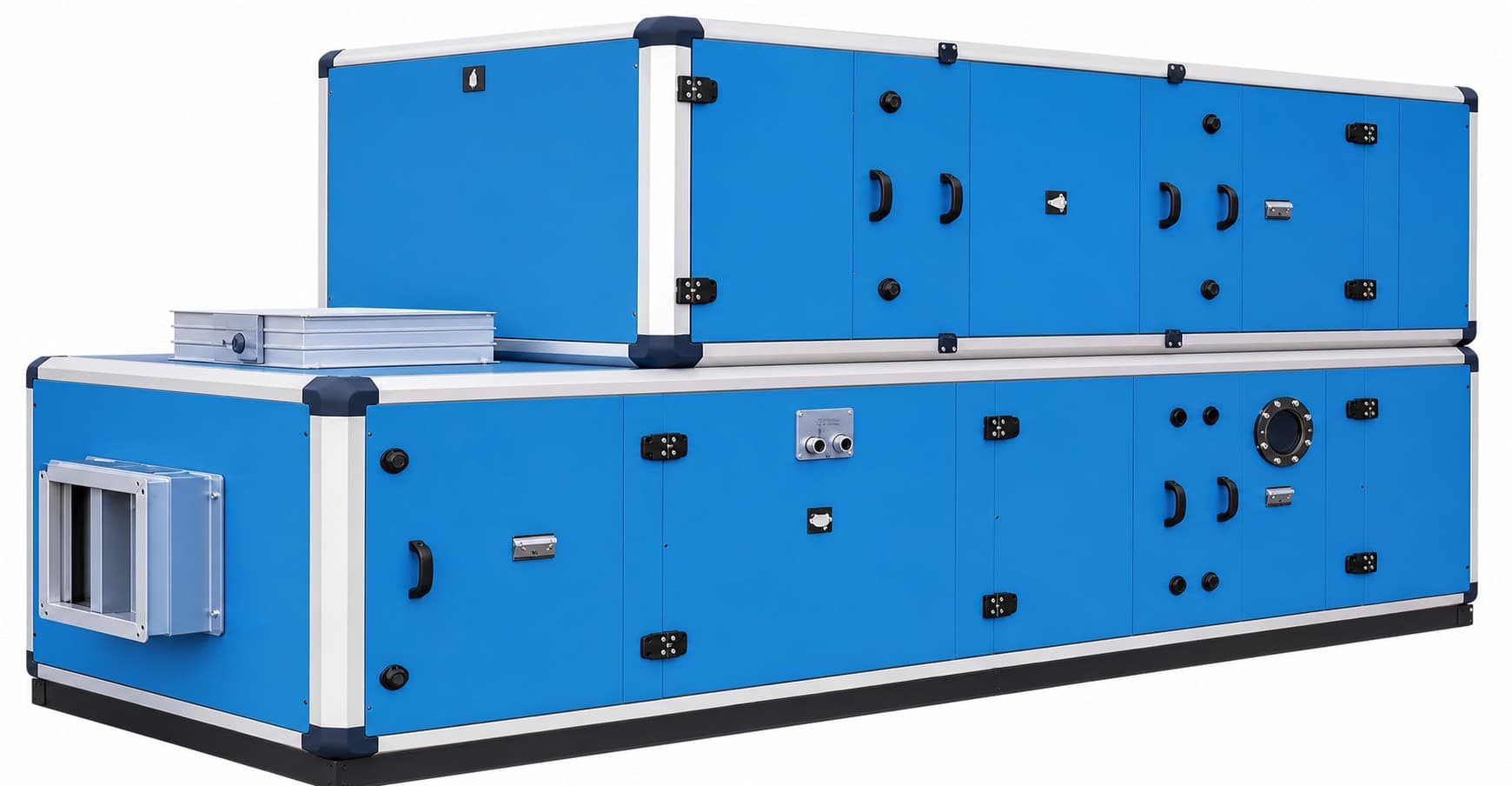

Double Decker Air Handling Unit
AHU · Floor mounted

Double Decker AHU

Stacked supply & return decks for high-CFM pharma applications where floor space is constrained.

Floor mounted500–50,000 CFM

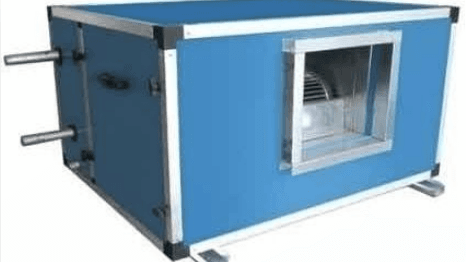

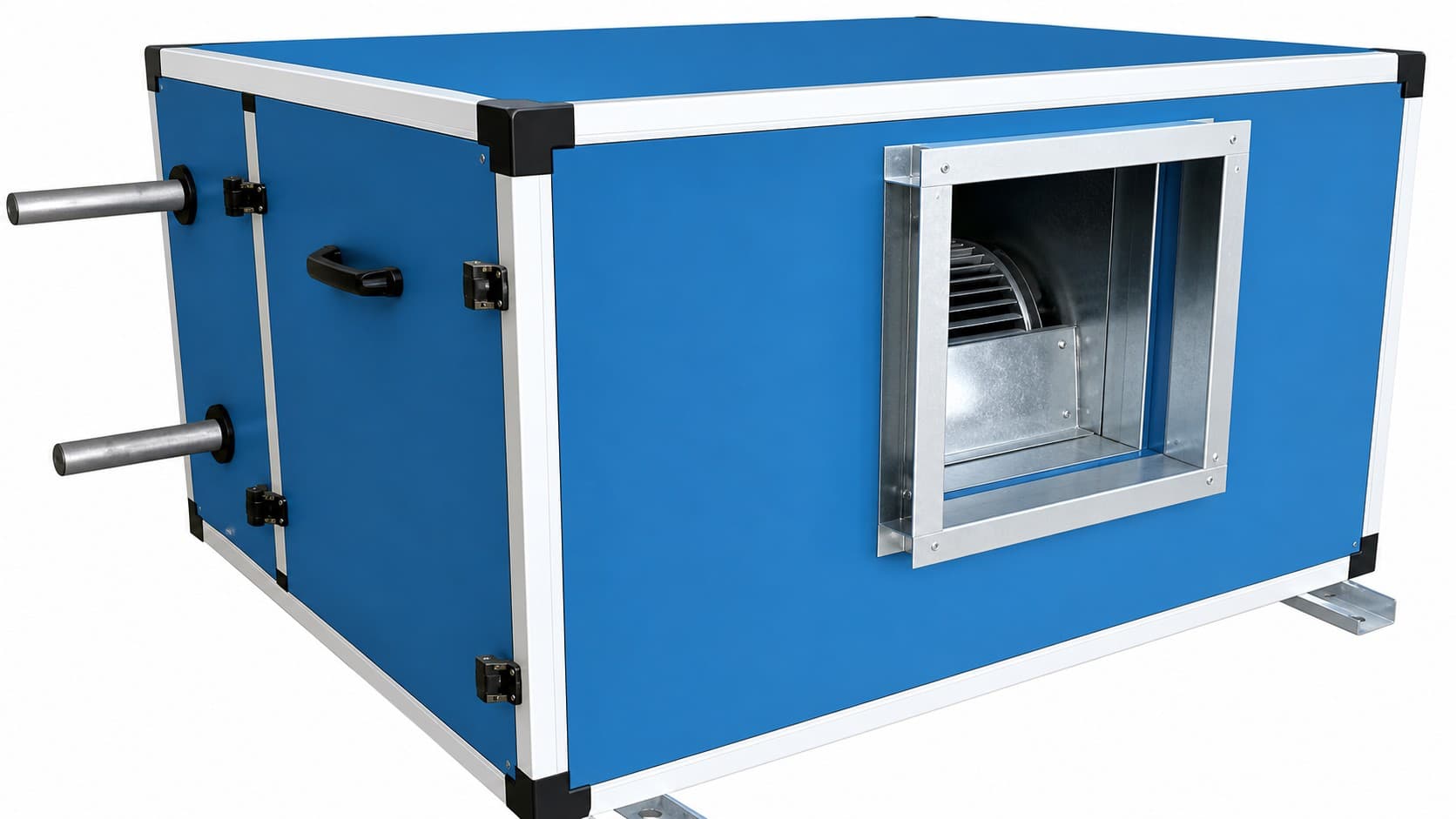

Ceiling-suspended Air Handling Unit
AHU · Ceiling suspended

Ceiling-Suspended AHU

Compact above-ceiling unit for clean corridors, OTs and small clean zones — preserves usable floor area.

SuspendedUp to 8,000 CFM

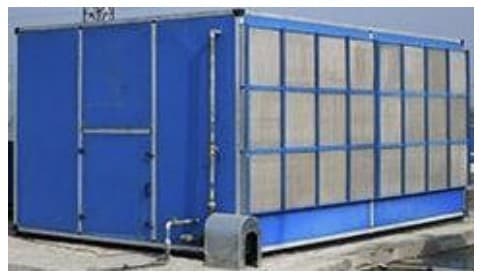

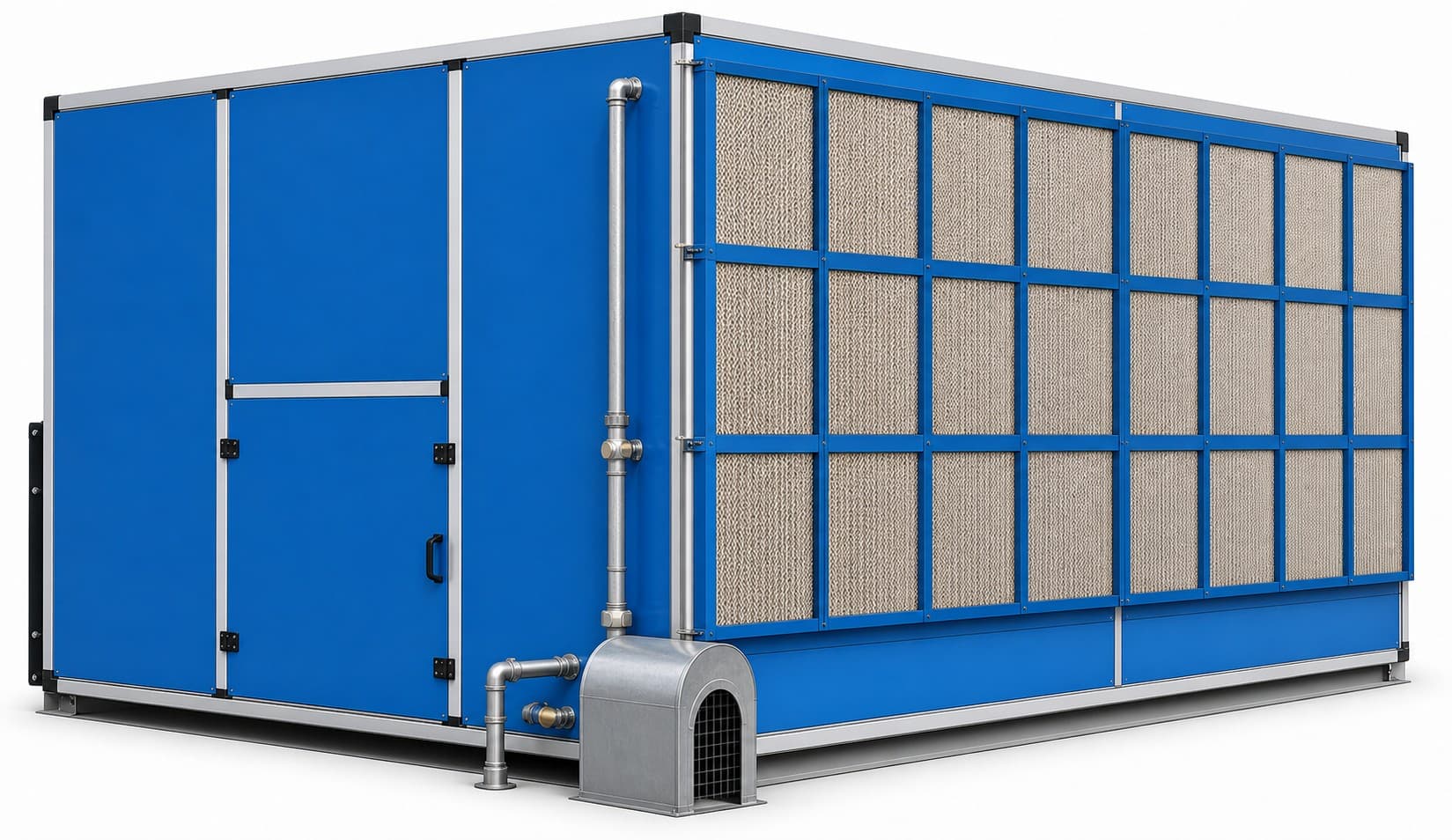

Air Washer Unit
Conditioning

Air Washer Unit

Cleans and cools warm, moist incoming air via refrigerated water contact — reaching dew point to reduce humidity.

Cooling & cleaning1,000–35,000 CFM

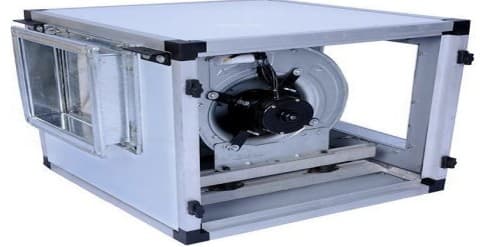

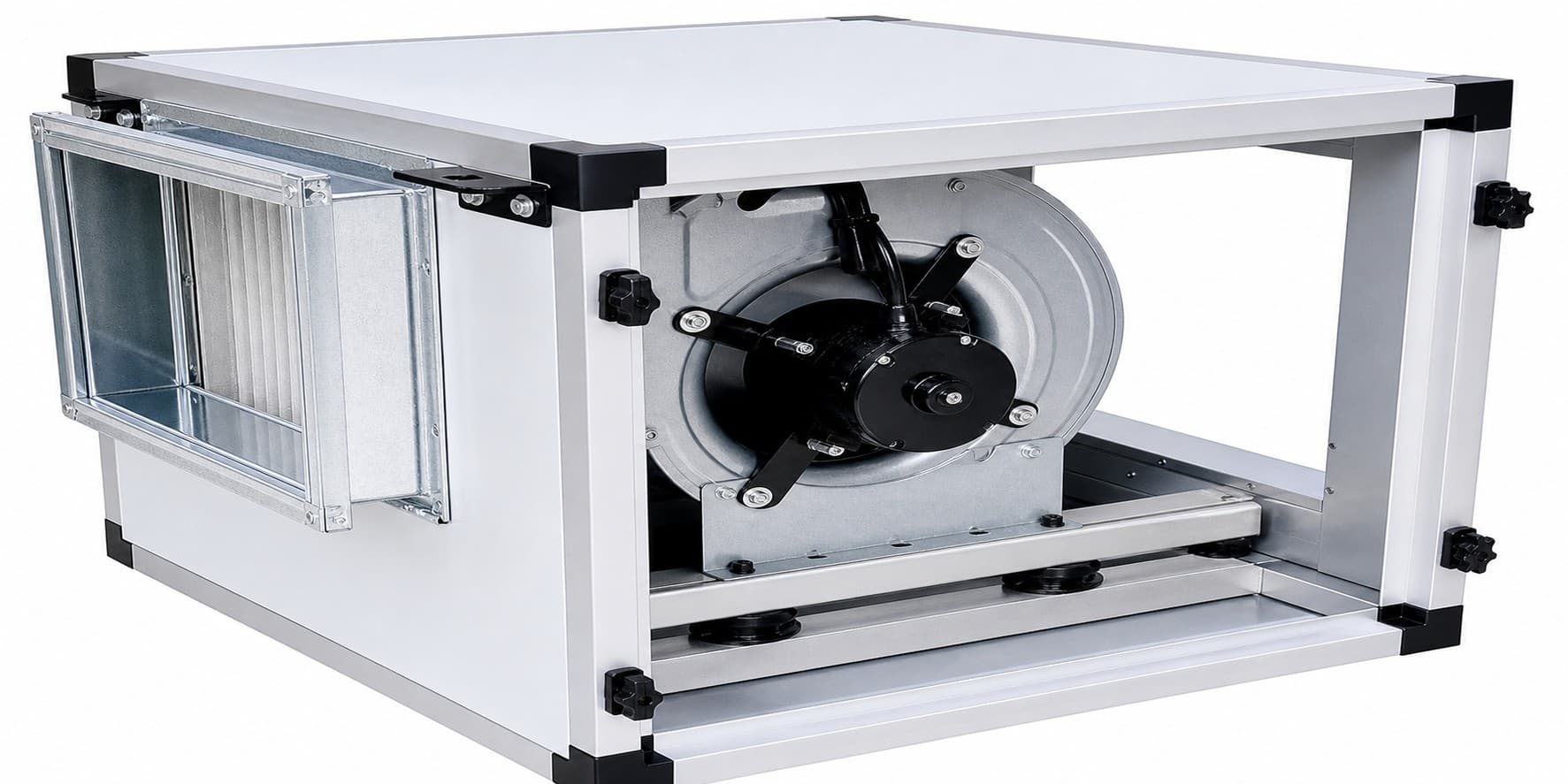

FDV and Exhaust Unit
Exhaust · FDV

FDV & Exhaust Units

Commercial kitchen & process exhaust — manages grease vapor, smoke, soot, steam, heat and odor away from the building.

Exhaust1,000–35,000 CFM

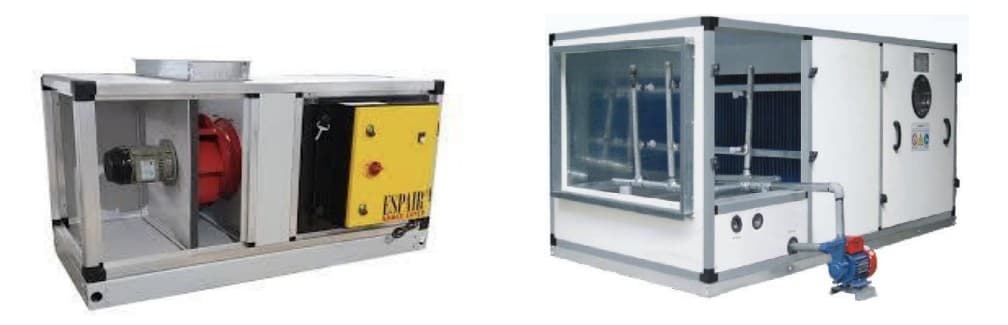

Dry and Wet Scrubber Unit
Pollution control

Dry & Wet Scrubber Units

Removes particulates and gases from industrial exhaust streams — available in both wet and dry chemical configurations.

Air pollution controlCustom

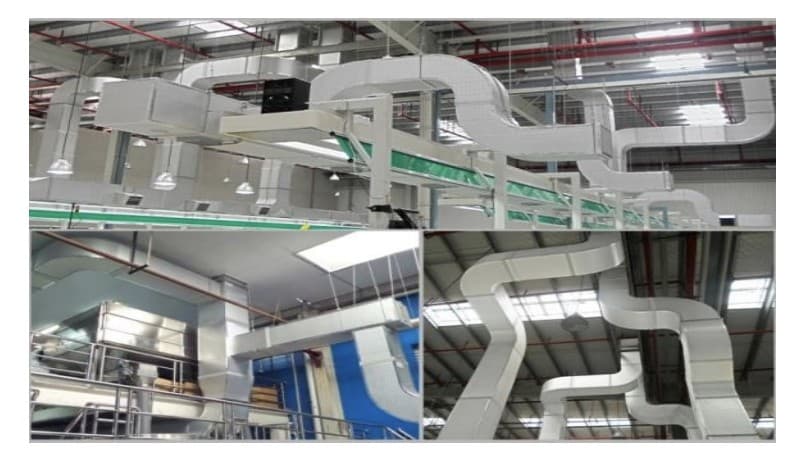

Ducting and insulation work
Distribution

Ducting & Insulation

Laid-out, sized and optimized duct systems with full insulation — supply, return and exhaust paths.

Fabrication

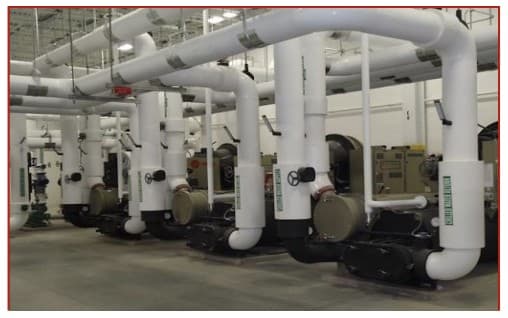

Chiller piping
Hydronic

Chiller Piping & Commissioning

Chilled water piping, AHU manifolds, pumps & commissioning — complete plant-room scope.

Plant room

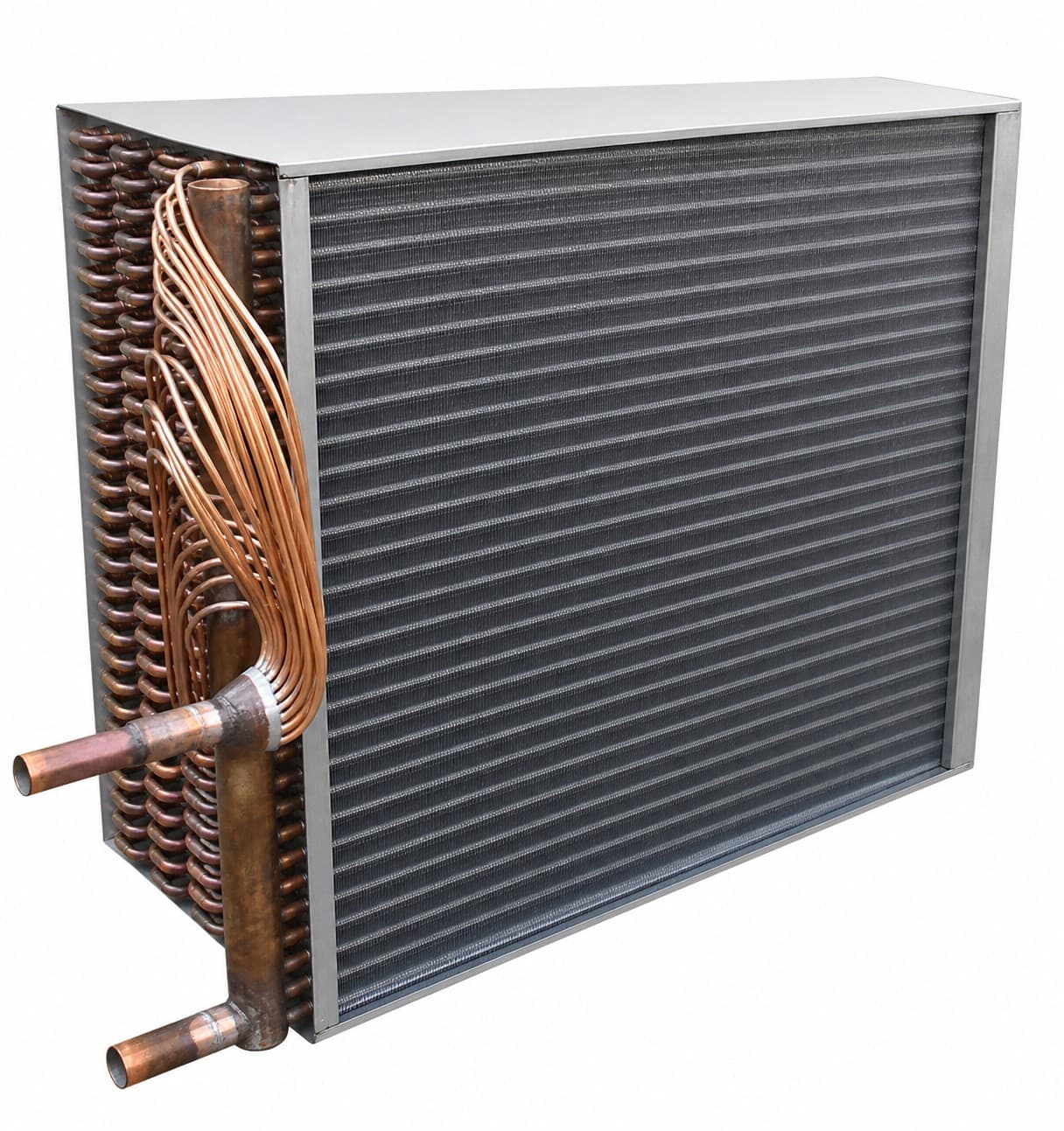

Cooling coils and DX units
Heat transfer

Cooling Coils & DX Units

Coils & DX supply / commissioning — passive heat exchangers transferring heat to a fluid medium.

Coils · DX

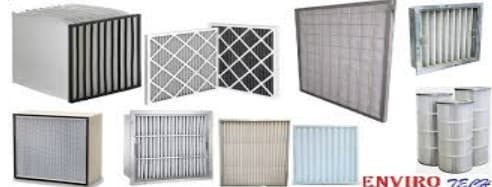

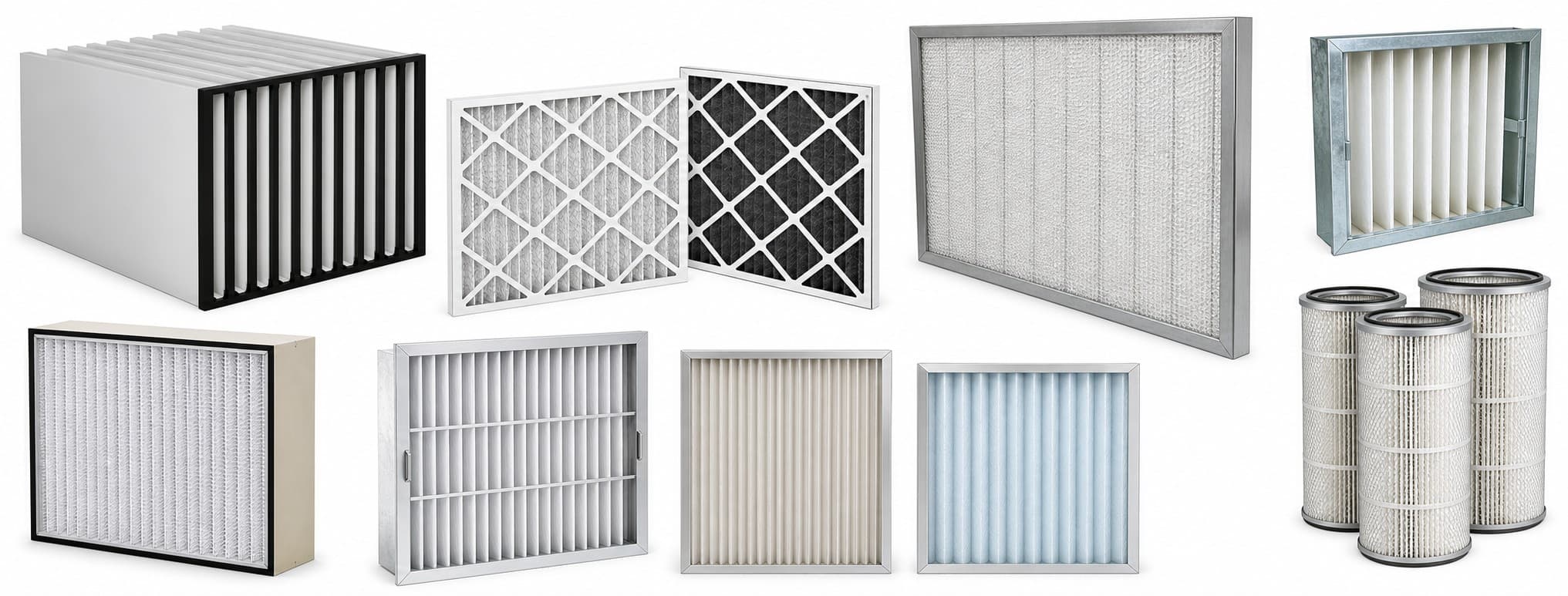

HEPA, pre and fine filters
Filtration

HEPA, Pre & Fine Filters

Removes dust, pollen, mold, bacteria & VOCs. Critical for pharma, healthcare and food ventilation.

Air quality
Modular Clean Room

Partitions, ceilings & doors — built to the panel.

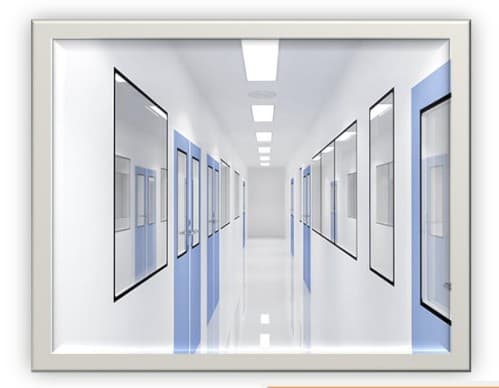

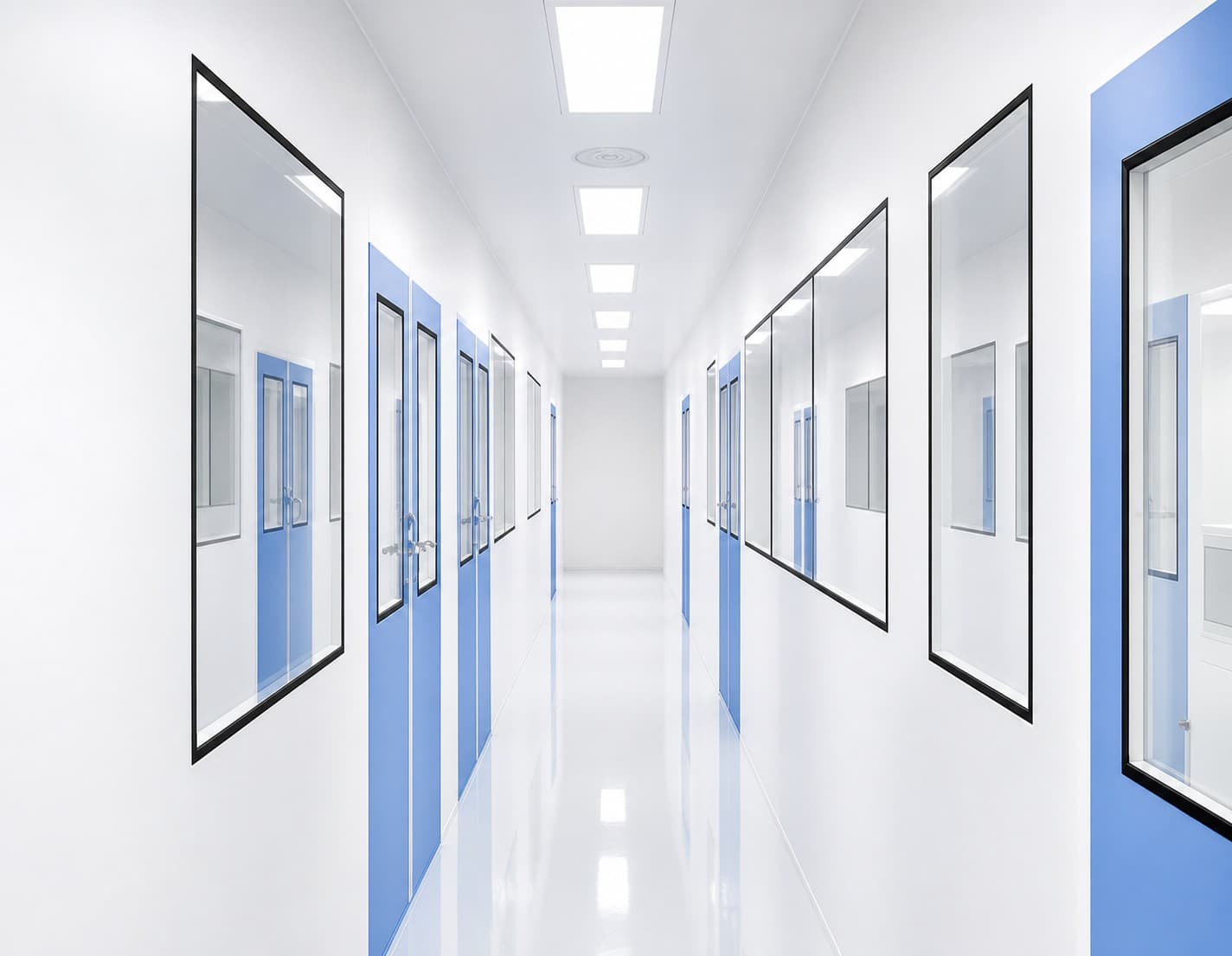

Modular partition panel

Modular Partition Panel

GPSP sheet with 100–120 gsm zinc coating. Filled with PUF, honeycomb / paper-core or high-density mineral wool per requirement. Stack-able for higher applications.

  • Thickness: 40 / 50 / 60 / 80 / 100 mm
  • Height: up to 4,000 mm
  • Infill: PUF · Honeycomb · Mineral Wool
  • GPSP, zinc 100–120 gsm

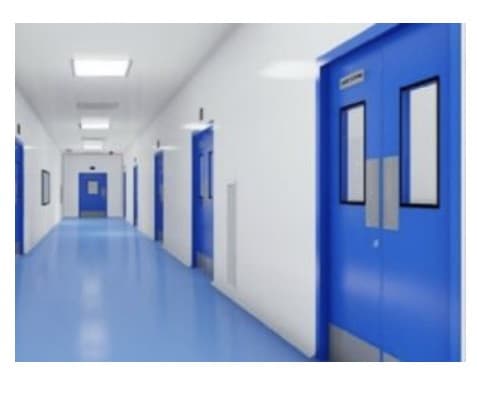

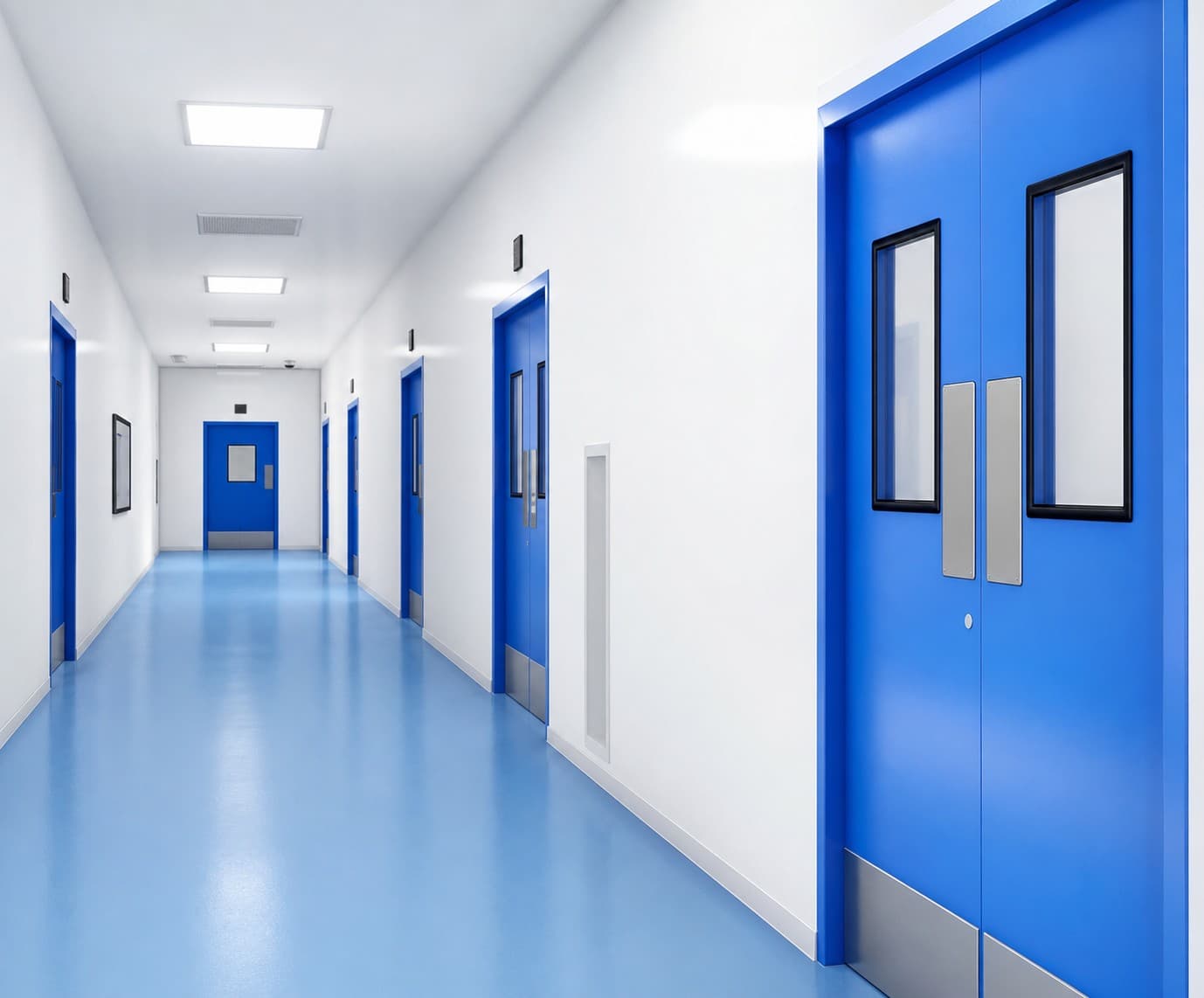

Load-bearing ceiling and modular operation theatre

Load-Bearing Ceiling & Modular OT

Walk-on ceiling systems and complete modular operation theatres — engineered for hospital and pharma cleanroom service.

  • Load-bearing ceiling
  • Modular OT shells
  • Integrated services routing
  • Coved corner profiles
Flush windows

Flush Windows

Double-glaze and single-glaze flush windows fabricated from GPSP with 100–120 gsm zinc coating. Frame depth follows panel or wall thickness.

  • For Partition: 44–100 mm
  • For Brick work: site-matched
  • Single & Double Glazed
  • GPSP construction

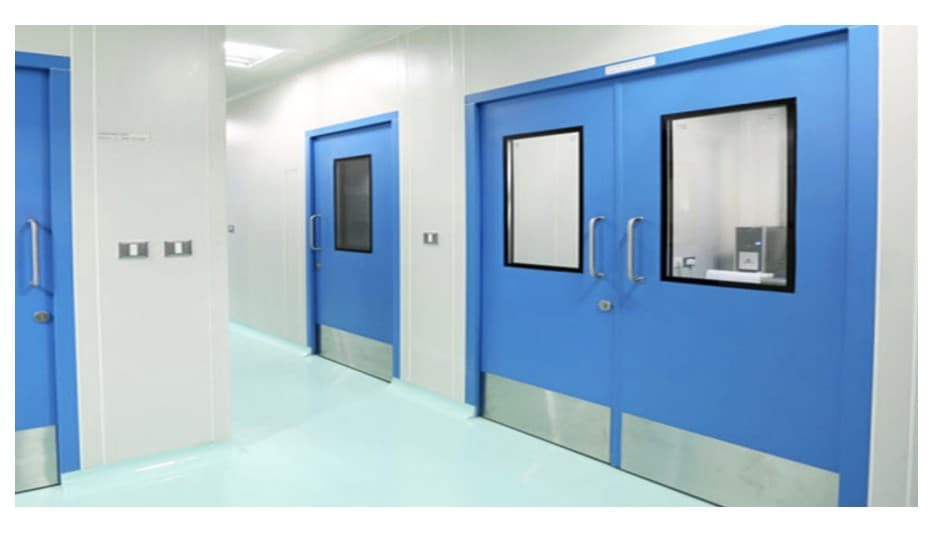

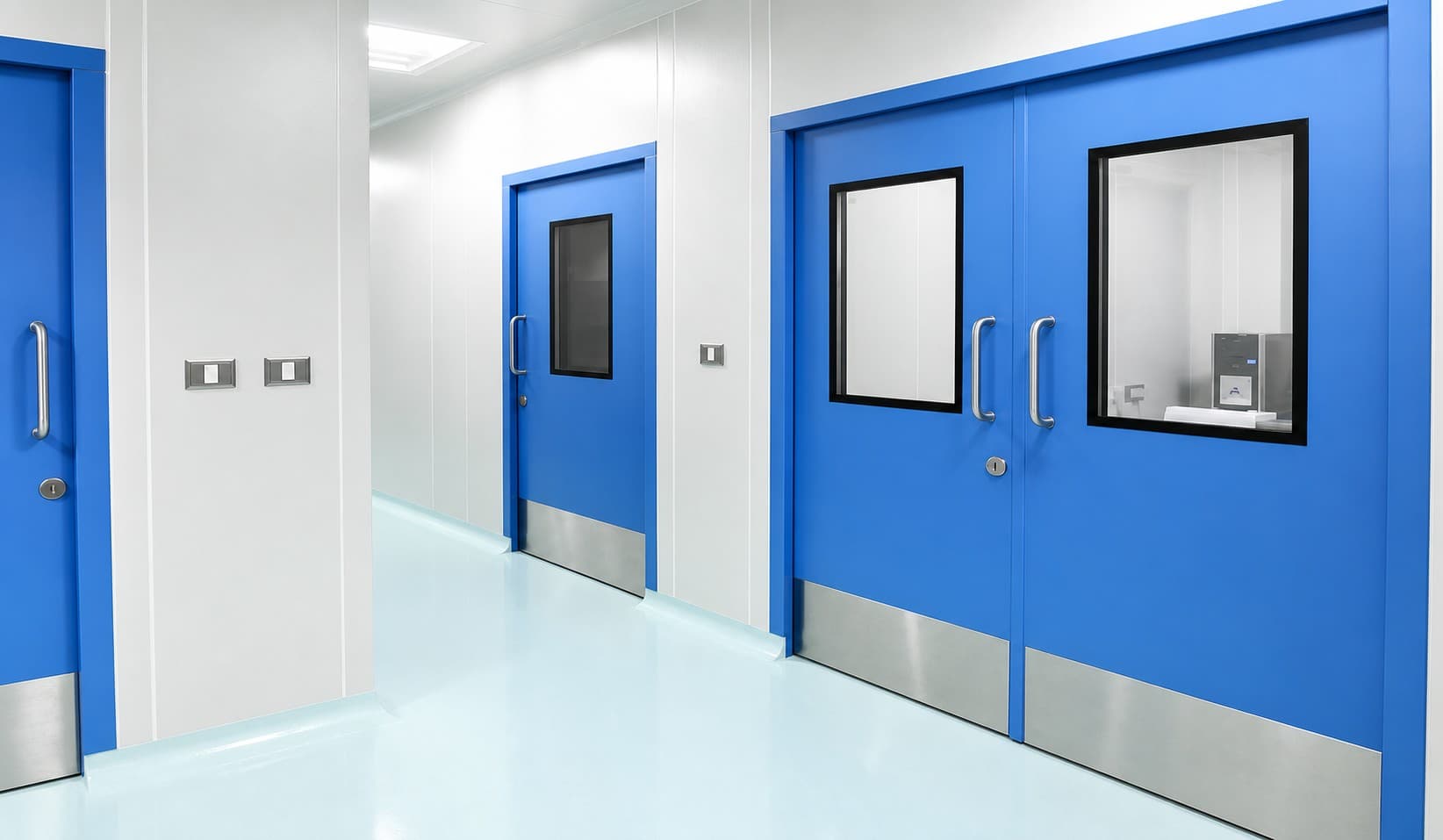

Clean room doors

Clean Room Doors

Designed for the most stringent clean room and hygienic environments — they do not swell, rot, warp, rust or attract bacteria. Available in GPSP and stainless steel.

  • Clean Room & Industrial
  • Acoustic, Emergency, Fire-rated
  • Food-grade silicon gaskets
  • Easy demount-ability
Panel thickness
40–100 mm
Panel height
Up to 4,000 mm
Sheet coating
GPSP · 100–120 gsm
Door materials
GPSP & Stainless
Validation & Calibration

HVAC qualification to ISO 14644 — the seven tests, by the book.

— Standard reference

Validation as per ISO 14644-1, 2, 3 : 2015

Instrument calibration is one of the primary processes used to maintain accuracy. Calibration configures an instrument to provide a result for a sample within an acceptable range — applied to every HVAC parameter measured during qualification.

International standardISO 14644 · 2015

Tests we perform & calibrate

  1. 01
    Air Flow PatternVisualisation & directional study
  2. 02
    Room Air Changes per HourACPH measurement & balancing
  3. 03
    Filter Integrity TestingHEPA leak test
  4. 04
    Pressure DifferentialsInter-room cascade verification
  5. 05
    Particle CountISO class qualification
  6. 06
    Recovery TestPost-disturbance cleanroom recovery
  7. 07
    Temperature & Relative HumidityMapping & monitoring
Industries served

Specialist airflow for regulated environments.

i. Pharma

Pharmaceutical

OSD plants, formulation, injectable lines & R&D — full clean room shells with qualified HVAC.

  • Modular partitions & ceilings
  • HEPA filtration trains
  • HVAC validation
  • Pressure cascade design
ii. Healthcare

Hospitals & OT

Modular operation theatres, ICUs and isolation suites — load-bearing ceiling and acoustic doors.

  • Modular OT shells
  • Load-bearing ceiling
  • Acoustic & fire doors
  • Air change qualification
iii. Food

Food & Beverage

Process kitchens, cold rooms, packaging halls — exhaust hoods, scrubbers and air washers tuned for the load.

  • FDV & exhaust hoods
  • Air washer units
  • Wet/dry scrubbers
  • Hygienic door hardware
Trusted by

A growing list of pharma & healthcare clients across India and Nepal.

SP
SKINS Pharma
Pharmaceutical
RN
Ripped Up Nutrition
Nutraceutical
UP
Unique Pharmaceutical
Pharma · Nepal
SH
Supreme Healthcare
Healthcare · Nepal
SL
Samarth Lifesciences
Life Sciences
SF
Spen Formulations
Formulations
Sectors served
Pharma · Nutraceutical · Healthcare · Life Sciences · Formulations
AHU Pricing

Indicative AHU pricing — straight from our 2026 BOQ.

— What's included
  • Double-skin PUF-infill panels (25 mm, 24G)
  • Aluminum thermal-break frame, internal coving
  • AMCA-certified DIDW blower + EFF2 motor
  • DX cooling coil section (4-row min, SS 304 tray)
  • Fresh air filter (10 µm) + return air filter (10 µm)
  • Final filter after coil (5 µm)
  • Marine light + limit switch in fan section
— Not included

Electrical heater banks · Condensing unit (ODU) · Copper refrigerant piping · GI ducting & insulation · Electrical panel & VFDs · HEPA housing & filters · Commissioning & validation · Transportation

Payment terms

70% advance with PO · 25% against Proforma Invoice · 5% at commissioning

Delivery: 5–8 weeks from PO

Estimate your AHU cost

Select a CFM rating and quantity. Prices exclude GST and transportation.

Unit price₹ 1,30,000
1 unit × ₹ 1,30,000₹ 1,30,000
GST @ 18% (for reference)₹ 23,400
Est. total (ex-GST)₹ 1,30,000

GST @ 18% extra as applicable. Prices exclude transportation, civil work, and scaffolding above 2.5 m.

Indicative prices based on standard specification. Final quote subject to site conditions. Valid 10 days from date of formal quotation.

Request a formal quote
— Get in touch

Have a project? Let's engineer the airflow.

Share your floor plan, ISO-class targets or AHU schedule — we'll revert with a drawing, specification and budget within 48 hours.

Address
VPO Village Madawala, Pinjore-Nalagarh Road,
Distt. Panchkula, Haryana — 134102
